GestureDetector

A control that detects gestures.

Attempts to recognize gestures that correspond to its non-None callbacks.

If this control has a content, it defers to that child control for its sizing behavior, else it grows to fit the parent instead.

Inherits: LayoutControl, AdaptiveControl

Properties

Events

Examples#

Live example

Solitaire game tutorial

Handling events#

import flet as ft


def main(page: ft.Page):
    page.add(
        ft.GestureDetector(
            content=ft.Container(bgcolor=ft.Colors.GREEN, width=200, height=200),
            hover_interval=50,
            on_tap=lambda e: print(e),
            on_tap_down=lambda e: print(e),
            on_tap_up=lambda e: print(e),
            on_secondary_tap=lambda e: print(e),
            on_secondary_tap_down=lambda e: print(e),
            on_secondary_tap_up=lambda e: print(e),
            on_long_press_start=lambda e: print(e),
            on_long_press_end=lambda e: print(e),
            on_secondary_long_press_start=lambda e: print(e),
            on_secondary_long_press_end=lambda e: print(e),
            on_double_tap=lambda e: print(e),
            on_double_tap_down=lambda e: print(e),
            on_pan_start=lambda e: print(e),
            on_pan_update=lambda e: print(e),
            on_pan_end=lambda e: print(e),
            on_hover=lambda e: print(e),
            on_enter=lambda e: print(e),
            on_exit=lambda e: print(e),
        )
    )


ft.run(main)

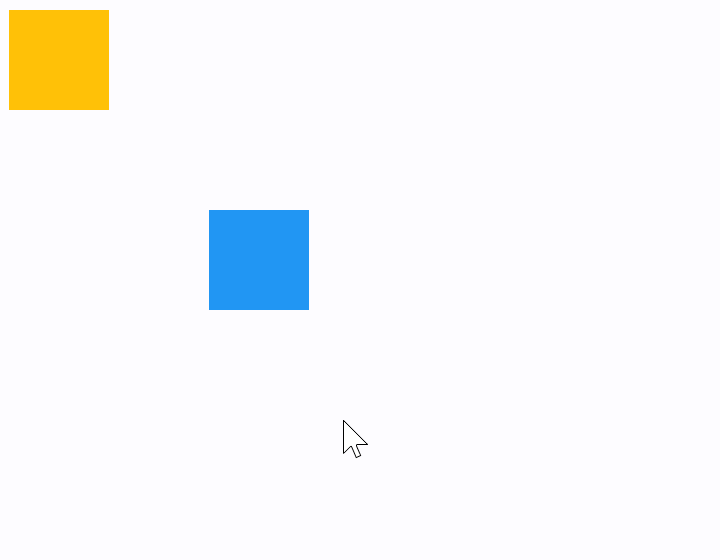

Draggable containers#

The following example demonstrates how a control can be freely dragged inside a Stack.

The sample also shows that GestureDetector can have a child control (blue container) as well as be nested inside another control (yellow container) giving the same results.

import flet as ft


def main(page: ft.Page):
    def handle_pan_update1(e: ft.DragUpdateEvent[ft.GestureDetector]):
        container = e.control.parent
        container.top = max(0.0, container.top + e.delta_y)
        container.left = max(0.0, container.left + e.delta_x)
        container.update()

    def handle_pan_update2(e: ft.DragUpdateEvent[ft.GestureDetector]):
        e.control.top = max(0.0, e.control.top + e.delta_y)
        e.control.left = max(0.0, e.control.left + e.delta_x)
        e.control.update()

    page.add(
        ft.Stack(
            width=1000,
            height=500,
            controls=[
                ft.Container(
                    bgcolor=ft.Colors.AMBER,
                    width=50,
                    height=50,
                    left=0,
                    top=0,
                    content=ft.GestureDetector(
                        mouse_cursor=ft.MouseCursor.MOVE,
                        drag_interval=50,
                        on_pan_update=handle_pan_update1,
                    ),
                ),
                ft.GestureDetector(
                    mouse_cursor=ft.MouseCursor.MOVE,
                    drag_interval=10,
                    on_vertical_drag_update=handle_pan_update2,
                    left=100,
                    top=100,
                    content=ft.Container(bgcolor=ft.Colors.BLUE, width=50, height=50),
                ),
            ],
        )
    )


ft.run(main)

draggable-containers

Window drag area#

import flet as ft


def main(page: ft.Page):
    def on_pan_update(e: ft.DragUpdateEvent[ft.GestureDetector]):
        page.window.left += e.global_delta.x
        page.window.top += e.global_delta.y
        page.update()

    page.add(
        ft.Stack(
            width=1000,
            height=500,
            controls=[
                ft.GestureDetector(
                    mouse_cursor=ft.MouseCursor.MOVE,
                    on_pan_update=on_pan_update,
                    left=200,
                    top=200,
                    content=ft.Container(bgcolor=ft.Colors.PINK, width=50, height=50),
                ),
            ],
        )
    )


ft.run(main)

Mouse Cursors#

import flet as ft


def main(page: ft.Page):
    def on_pan_update(event: ft.DragUpdateEvent[ft.GestureDetector]):
        container.top = max(0.0, container.top + event.delta_y)
        container.left = max(0.0, container.left + event.delta_x)
        container.update()

    gesture_detector = ft.GestureDetector(
        mouse_cursor=ft.MouseCursor.BASIC,
        drag_interval=50,
        on_pan_update=on_pan_update,
    )
    container = ft.Container(
        content=gesture_detector,
        bgcolor=ft.Colors.AMBER,
        width=150,
        height=150,
        left=0,
        top=0,
    )

    def handle_button_click(e: ft.Event[ft.Button]):
        gesture_detector.mouse_cursor = next(
            generate_mouse_cursors(list(ft.MouseCursor))
        )
        text.value = f"Mouse Cursor:  {gesture_detector.mouse_cursor}"
        page.update()

    def generate_mouse_cursors(m_list):
        while True:
            yield from m_list

    page.add(
        ft.Stack(controls=[container], width=1000, height=500),
        ft.Button("Change mouse Cursor", on_click=handle_button_click),
        text := ft.Text(f"Mouse Cursor:  {gesture_detector.mouse_cursor}"),
    )


ft.run(main)

Properties#

allowed_devices #

allowed_devices: list[PointerDeviceType] | None = None

TBD

content #

content: Control | None = None

A child Control contained by the gesture detector.

drag_interval #

drag_interval: int = 0

Throttling in milliseconds for horizontal drag, vertical drag and pan update events.

When a user moves a pointer a lot of events are being generated to do precise tracking. drag_interval allows sending drag update events to a Flet program every X milliseconds, thus preserving the bandwidth (web and mobile apps).

Default is 0 - no throttling, all events are sent to a Flet program, very smooth tracking.

exclude_from_semantics #

exclude_from_semantics: bool = False

TBD

hover_interval #

hover_interval: int = 0

Throttling in milliseconds for on_hover event.

mouse_cursor #

mouse_cursor: MouseCursor | None = None

The mouse cursor for mouse pointers that are hovering over the control.

multi_tap_touches #

multi_tap_touches: int = 0

The minimum number of pointers to trigger on_multi_tap event.

trackpad_scroll_causes_scale #

trackpad_scroll_causes_scale: bool = False

TBD

Events#

on_double_tap #

on_double_tap: (
    EventHandler[TapEvent[GestureDetector]] | None
) = None

The user has tapped the screen with a primary button at the same location twice in quick succession.

on_double_tap_down #

on_double_tap_down: (
    EventHandler[TapEvent[GestureDetector]] | None
) = None

Called when a pointer that might cause a double tap has contacted the screen at a particular location.

Triggered immediately after the down event of the second tap.

on_enter #

on_enter: (
    EventHandler[HoverEvent[GestureDetector]] | None
) = None

Called when a mouse pointer has entered this control.

on_exit #

on_exit: (
    EventHandler[HoverEvent[GestureDetector]] | None
) = None

Called when a mouse pointer has exited this control.

on_horizontal_drag_end #

on_horizontal_drag_end: (
    EventHandler[DragEndEvent[GestureDetector]] | None
) = None

Called when a pointer moving horizontally is no longer in contact and was moving at a specific velocity.

on_horizontal_drag_start #

on_horizontal_drag_start: (
    EventHandler[DragStartEvent[GestureDetector]] | None
) = None

Called when a pointer has contacted the screen with a primary button and has begun to move horizontally.

on_horizontal_drag_update #

on_horizontal_drag_update: (
    EventHandler[DragUpdateEvent[GestureDetector]] | None
) = None

Called when a pointer that is in contact with the screen and moving horizontally has moved in the horizontal direction.

on_hover #

on_hover: (
    EventHandler[HoverEvent[GestureDetector]] | None
) = None

Called when a mouse pointer has entered this control.

on_long_press_end #

on_long_press_end: (
    EventHandler[LongPressEndEvent[GestureDetector]] | None
) = None

Called when a pointer that has triggered a long-press with a primary button has stopped contacting the screen.

on_long_press_start #

on_long_press_start: (
    EventHandler[LongPressStartEvent[GestureDetector]]
    | None
) = None

Called when a long press gesture with a primary button has been recognized.

Triggered when a pointer has remained in contact with the screen at the same location for a long period of time.

on_multi_long_press #

on_multi_long_press: (
    EventHandler[LongPressEndEvent[GestureDetector]] | None
) = None

Called when a long press gesture with multiple pointers has been recognized.

on_multi_tap #

on_multi_tap: (
    EventHandler[TapEvent[GestureDetector]] | None
) = None

Called when multiple pointers contacted the screen.

on_pan_end #

on_pan_end: (
    EventHandler[DragEndEvent[GestureDetector]] | None
) = None

Called when a pointer is no longer in contact and was moving at a specific velocity.

on_pan_start #

on_pan_start: (
    EventHandler[DragStartEvent[GestureDetector]] | None
) = None

Called when a pointer has contacted the screen and has begun to move.

on_pan_update #

on_pan_update: (
    EventHandler[DragUpdateEvent[GestureDetector]] | None
) = None

Called when a pointer that is in contact with the screen and moving has moved again.

on_right_pan_end #

on_right_pan_end: (
    EventHandler[PointerEvent[GestureDetector]] | None
) = None

A pointer with secondary button pressed is no longer in contact and was moving at a specific velocity.

on_right_pan_start #

on_right_pan_start: (
    EventHandler[PointerEvent[GestureDetector]] | None
) = None

Pointer has contacted the screen while secondary button pressed and has begun to move.

on_right_pan_update #

on_right_pan_update: (
    EventHandler[PointerEvent[GestureDetector]] | None
) = None

A pointer that is in contact with the screen, secondary button pressed and moving has moved again.

on_scale_end #

on_scale_end: (
    EventHandler[ScaleEndEvent[GestureDetector]] | None
) = None

TBD

on_scale_start #

on_scale_start: (
    EventHandler[ScaleStartEvent[GestureDetector]] | None
) = None

Called when the pointers in contact with the screen have established a focal point and initial scale of 1.0.

on_scale_update #

on_scale_update: (
    EventHandler[ScaleUpdateEvent[GestureDetector]] | None
) = None

TBD

on_scroll #

on_scroll: (
    EventHandler[ScrollEvent[GestureDetector]] | None
) = None

TBD

on_secondary_long_press_end #

on_secondary_long_press_end: (
    EventHandler[LongPressEndEvent[GestureDetector]] | None
) = None

Called when a pointer that has triggered a long-press with a secondary button has stopped contacting the screen.

on_secondary_long_press_start #

on_secondary_long_press_start: (
    EventHandler[LongPressStartEvent[GestureDetector]]
    | None
) = None

Called when a long press gesture with a secondary button has been recognized.

Triggered when a pointer has remained in contact with the screen at the same location for a long period of time.

on_secondary_tap #

on_secondary_tap: (
    EventHandler[TapEvent[GestureDetector]] | None
) = None

A tap with a secondary button has occurred.

on_secondary_tap_down #

on_secondary_tap_down: (
    EventHandler[TapEvent[GestureDetector]] | None
) = None

Called when a pointer that might cause a tap with a secondary button has contacted the screen at a particular location.

on_secondary_tap_up #

on_secondary_tap_up: (
    EventHandler[TapEvent[GestureDetector]] | None
) = None

Called when a pointer that will trigger a tap with a secondary button has stopped contacting the screen at a particular location.

on_tap #

on_tap: EventHandler[TapEvent[GestureDetector]] | None = (
    None
)

Called when a tap with a primary button has occurred.

on_tap_down #

on_tap_down: (
    EventHandler[TapEvent[GestureDetector]] | None
) = None

Called when a pointer that might cause a tap with a primary button has contacted the screen at a particular location.

on_tap_up #

on_tap_up: (
    EventHandler[TapEvent[GestureDetector]] | None
) = None

Called when a pointer that will trigger a tap with a primary button has stopped contacting the screen at a particular location.

on_vertical_drag_end #

on_vertical_drag_end: (
    EventHandler[DragEndEvent[GestureDetector]] | None
) = None

Called when a pointer moving vertically is no longer in contact and was moving at a specific velocity.

on_vertical_drag_start #

on_vertical_drag_start: (
    EventHandler[DragStartEvent[GestureDetector]] | None
) = None

Called when a pointer has contacted the screen and has begun to move vertically.

on_vertical_drag_update #

on_vertical_drag_update: (
    EventHandler[DragUpdateEvent[GestureDetector]] | None
) = None

A pointer moving vertically has moved in the vertical direction.
